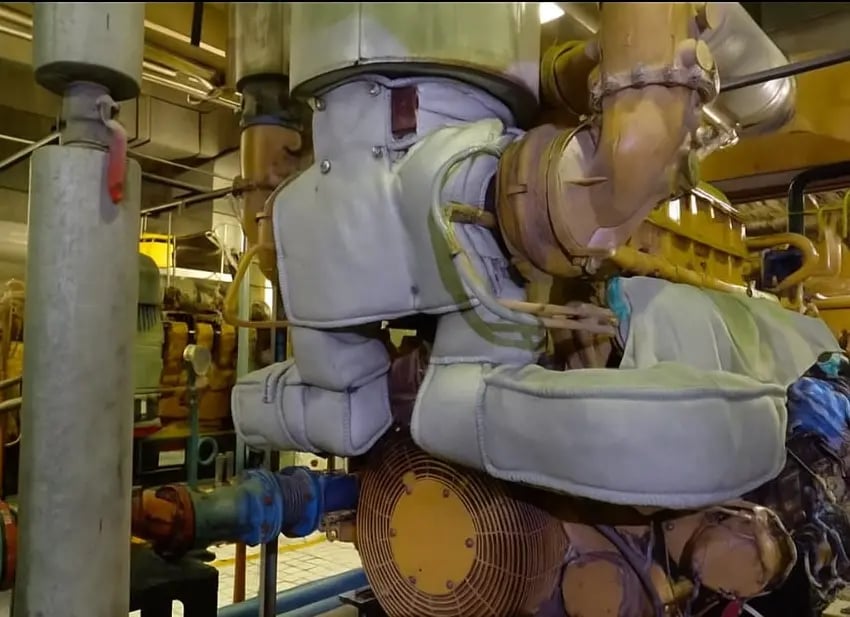

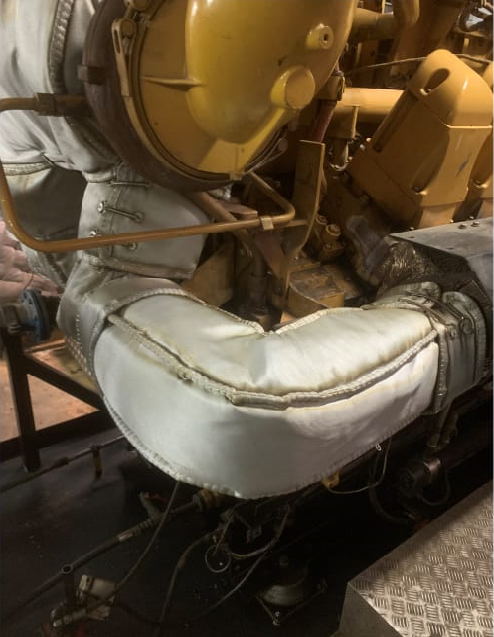

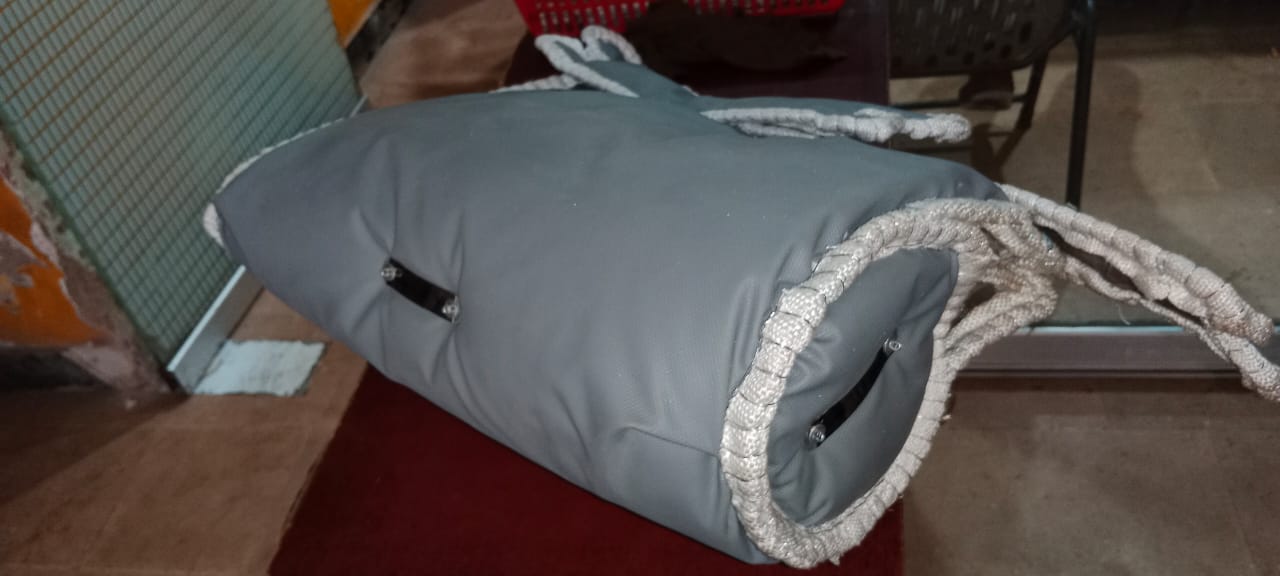

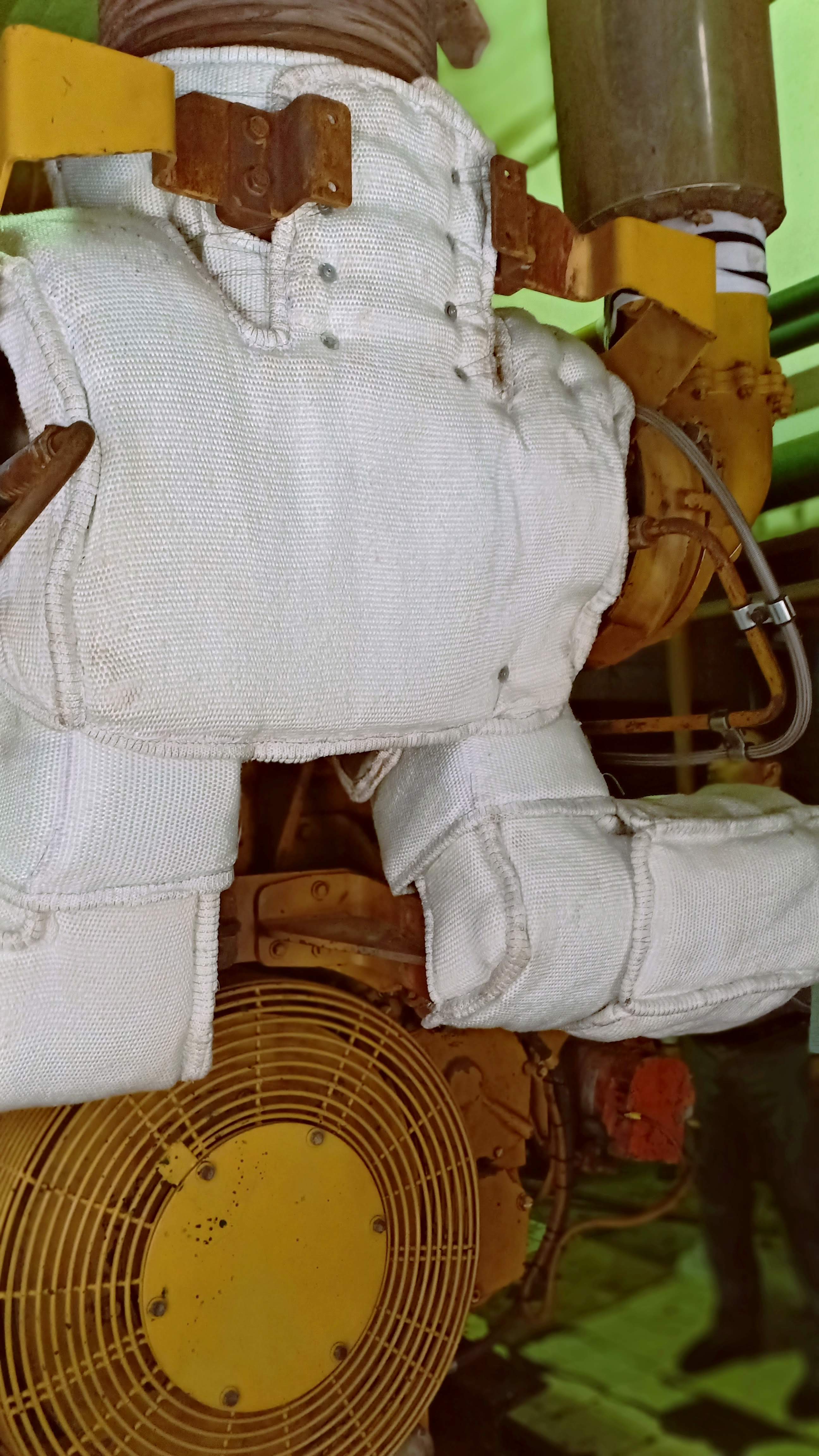

Removable Lagging Insulation Jacket for Caterpillar G3516C Generator Engine

The Removable Lagging Insulation Jacket for Caterpillar G3516C natural gas generator engine is a high-performance industrial thermal insulation solution engineered for extreme operating environments. Designed specifically for exhaust manifolds, turbochargers, and high-temperature piping systems, this insulation jacket plays a critical role in improving energy efficiency, enhancing personnel safety, and optimizing overall generator performance.

Unlike traditional rigid insulation systems that require permanent installation, this advanced removable insulation jacket is designed for quick installation, easy removal, and repeated reuse, making it ideal for facilities where frequent maintenance, inspection, and servicing are required.

This solution is widely used in power generation plants, CHP (Combined Heat and Power) systems, biogas plants, oil & gas facilities, and heavy industrial operations where Caterpillar G3516C generator sets are installed.

Engineered for Caterpillar G3516C High-Temperature Applications

The Caterpillar G3516C is a high-output natural gas engine widely used in industrial power generation. During operation, exhaust components such as manifolds and turbochargers can reach extremely high temperatures, leading to:

• Significant heat loss
• Reduced engine efficiency
• Safety hazards for personnel
• Increased ambient temperature in engine rooms
• Long-term equipment stress

The removable lagging insulation jacket is specifically engineered to solve these challenges by providing controlled thermal containment and heat retention without restricting maintenance access.

Key Technical Benefits

🌡️ Superior Heat Retention & Energy Efficiency

The insulation jacket is designed to minimize heat loss from exhaust systems by maintaining optimal internal gas temperatures. This ensures better thermal efficiency and improved turbocharger performance.

A properly engineered insulation blanket keeps the turbocharger hot side hot and cold side cool, allowing the turbo system to operate at maximum efficiency, improving combustion performance and reducing fuel consumption.

🛡️ Enhanced Personnel Safety

Exposed exhaust manifolds and turbochargers can reach dangerous surface temperatures. This insulation jacket significantly reduces outer surface temperatures, helping to protect maintenance staff and operators from accidental burns and heat exposure.

By lowering contact surface temperature, it ensures compliance with industrial safety standards and improves workplace safety conditions around generator systems.

🔇 Noise and Vibration Reduction

High-speed gas engines generate significant mechanical and exhaust noise. The multi-layer insulation structure helps absorb and dampen sound vibrations, resulting in a noticeably quieter engine room environment.

This improves operator comfort and reduces long-term exposure to industrial noise pollution.

🔧 Fast Maintenance & Easy Access

One of the biggest advantages of this removable lagging insulation jacket is its tool-free installation and removal system.

• Can be removed within minutes
• No damage during servicing
• Reusable after inspection or repair
• Perfect for scheduled maintenance shutdowns

This reduces downtime and improves operational efficiency in critical power generation environments.

💧 Corrosion Under Insulation (CUI) Protection

Traditional fixed insulation systems often trap moisture, leading to corrosion under insulation (CUI). This advanced design allows moisture to escape while maintaining thermal efficiency, helping protect:

• Exhaust manifolds
• Turbocharger housing
• Flange connections
• High-temperature pipe sections

This significantly extends equipment life and reduces maintenance costs.

♻️ Durable, Reusable & Cost-Effective

The jacket is built for repeated use in harsh industrial environments. Unlike conventional insulation that must be replaced after each maintenance cycle, this system is:

• Reusable
• Heat resistant
• Mechanically strong
• Long service life

This results in long-term cost savings and reduced material waste.

Technical Specifications

Where G3516C Insulation Jackets Are Used Across Pakistan

The Caterpillar G3516C is widely deployed in gas-fired continuous-duty applications across Pakistan, and our removable insulation jackets are supplied to:

• Gas compression stations & gas field operations (Sindh & Balochistan) — where sustained high-temperature exhaust systems require reliable, serviceable insulation
• Industrial CHP and biogas power units (Punjab industrial belt) — combined heat and power setups needing consistent thermal efficiency
• Hospitals and critical backup power installations (major cities) — where safe surface temperatures and quick-access maintenance are essential
• Continuous-duty industrial manufacturing plants nationwide — running G3516C sets around the clock with minimal shutdown windows

Our team provides on-site measurement, OEM-matched fabrication, and nationwide delivery for all these applications.

Industrial Applications

The Caterpillar G3516C removable insulation jacket is widely used in:

⚡ Natural Gas Power Generation Plants
🏭 Combined Heat & Power (CHP) Facilities
♻️ Biogas & Landfill Gas Power Plants
🏥 Hospitals & Critical Backup Power Systems
🏗️ Industrial Manufacturing Facilities
⚙️ Continuous Operation Generator Sites

Why Choose Removable Lagging Over Fixed Insulation?

Removable insulation jackets are the modern standard for industries that require frequent inspection, uptime reliability, and energy optimization.

Global Industrial Demand

Caterpillar G3516C generator sets are installed worldwide — in power plants across the Middle East, industrial CHP facilities in Europe and Asia, and oil & gas operations globally — making thermal insulation a universal requirement for this engine model.

MSEW's own removable insulation jackets for Caterpillar generator models have already been exported to industrial clients in the Netherlands, Afghanistan, Iran, and Malaysia, with full export documentation and packaging support for new international orders.
